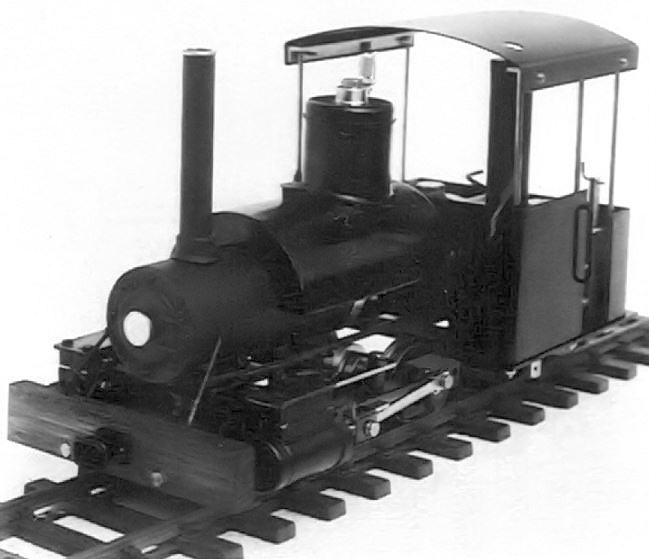

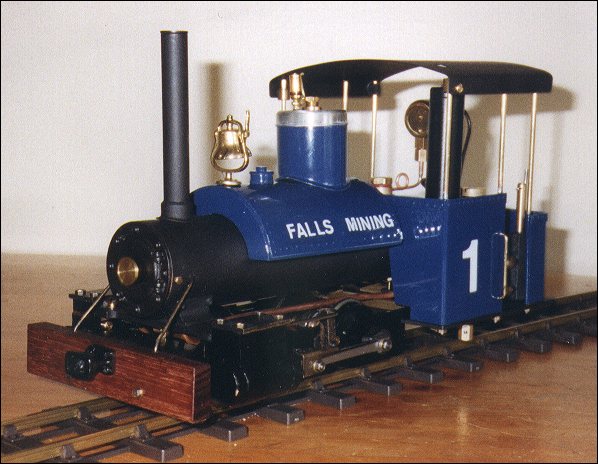

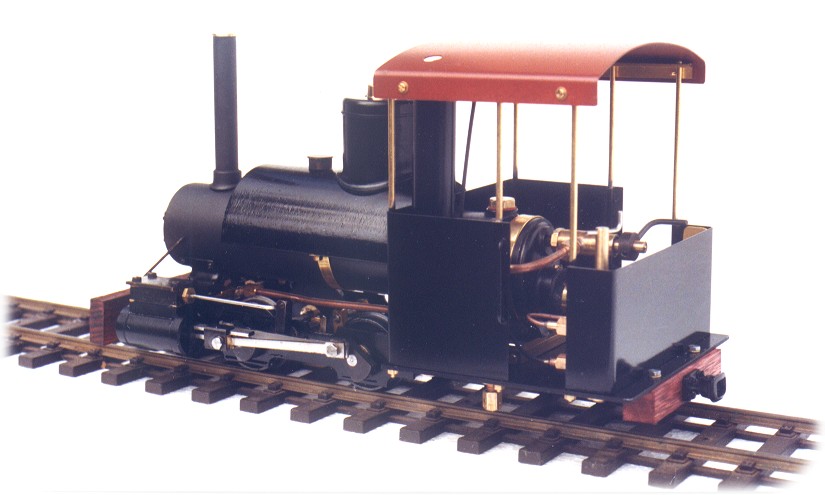

Bantam |
NO
LONGER AVAILABLE AS A PRODUCTION MODEL
| 0-4-0T
Mine / Quarry locomotive |
 |
SPECIFICATIONS
| Scale: |
1:20.3
(15mm/ft) |
|
Boiler: |
Single
flue, 100cc capacity |
| Gauge: |
1
(45mm) or O (32mm) |
|
Cylinders: |
2
with 7/16" bore x 1/2" stroke |
| Weight: |
2.2kg |
|
Valve
Gear: |
Slip
eccentric |
| Length: |
280mm |
|
Fittings: |
Safety
valve, regulator |
| Width: |
110mm |
|
Firing: |
Butane
gas |
| Height: |
135mm |
|
Lubricator: |
Displacement
type |
| Radius: |
600mm
(2ft) needed |
|
Materials: |
Bronze
cylinders, brass platework, copper boiler (silver soldered), steel
frames, stainless steel motion |
AVAILABILITY
| SOLD OUT and no longer available as
a production model |
OPTIONS
| Paint colour black, dark
red or dark green
Pressure gauge 0 - 80 PSI |
