C16 |
|
|
Denver & Rio Grande
C16 No. 42 |
 |
Specifications

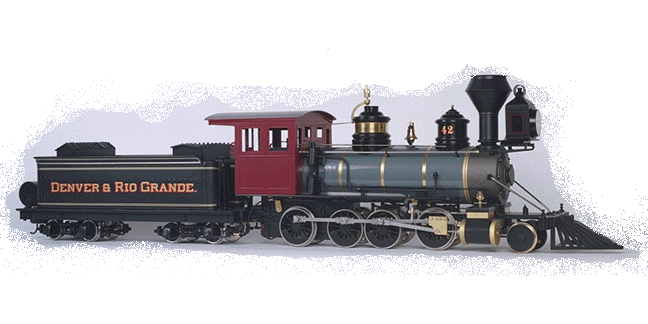

| Pioneer locomotive No. 42
"Anglo-Saxon" was built by Baldwin Locomotive Works in 1880
to conquer the steep grades and sharp curves of Colorado’s Denver
& Rio Grande Railway. For decades, the highly successful 2-8-0
Consolidation Class was the "standard motive power" of the
narrow gauge railroad. Sold to Otto Mear’s spectacular Silverton
Railroad in 1887, No. 42 served faithfully for an additional twenty
years before being retired around 1909. |
| Scale/Gauge: |
1/20.3, 45 mm |
Cylinders: |
2 |
| Total Weight: |
7.2 kg, 15.9 lb |
Cylinder Size: |
|
| Length: |
746 mm, 29.4 in |
Valve Gear: |
Simple Stephenson |
| Width: |
118 mm, 4.6 in |
Reversing: |
Stephenson with reverser in
the Cab |
| Height: |
182 mm, 7.2 in |
Fuel: |
Butane |
| Minimum Radius: |
0.765M, 30 in |
Driver Wheels: |
45 mm, 1.8 in |
| Boiler: |
Center flue type |
Fittings: |
Safety valve,
pressure gauge, regulator, reversing
lever, water level glass, water valve |
| Water Capacity: |
|
|
| Working pressure: |
60 psi |
|

Pricing and Availability
The C16 is
available in a number of styles:
- RGW #268 Black, C-16 D&RGW #268 "Bee",
- C-16 D&RGW #278 Black,
- Rio Grande Southern #42 and C-16 D&RGW #42 Black
Note that
the C16 is a limited production run locomotive and ongoing
availability is not assured.
For Accucraft
pricing and availability contact Argyle directly.
|
