13
ton Shay |
|
|

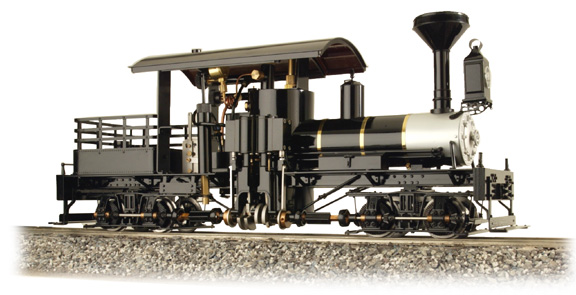

13 ton Shay
Two Cylinder Class A Shay |
|
Specifications
|
Based on a 13 ton open cab Class A Shay,
these models are constructed from brass and stainless steel with
steel gears and precision mechanisms to provide many years of
operation.
|
| Scale/Gauge: |
1:20.3
scale
45mm gauge |
Cylinders: |
2 cylinders with
16mm bore bore
32mm stroke |
| Total Weight: |
4.8 Kg, 10.5 lbs |
Valve Gear: |
Simple
eccentric |
| Length: |
444mm,
17 1/2 in |
Valves: |
Piston valve |
| Width: |
114mm, 4 1/2
in |
Reversing: |
Piston-valve
reverser, by lever in cab |
| Height: |
198mm,
7 3/4 in |
Fuel: |
Butane |
| Minimum Radius: |
2.4M,
8 ft |
Wheels: |
31.8mm, 1
1/4 in |
| Boiler: |
centre flue, 120ml water |
Fittings: |
Safety
valve, pressure gauge, regulator, water filler valve,
throttle |
| Working
pressure: |
50 - 60 psi |
|
Pricing and
Availability
|
For Accucraft pricing and availability contact Argyle
directly.
|
Options
|
Available
lettered or plain
Ordering Information:
AC77-201 SHAY - 13T Open Cab
AC77-204 SHAY - 13T Open Cab (Unlettered)
The loco is suitable for radio control requiring just one
servo to control the speed / direction valve.
|
