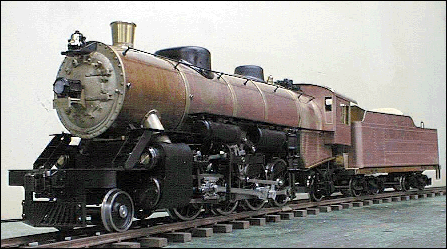

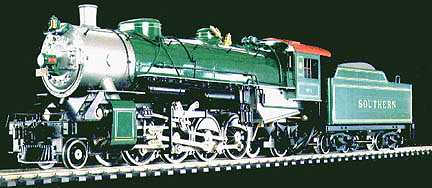

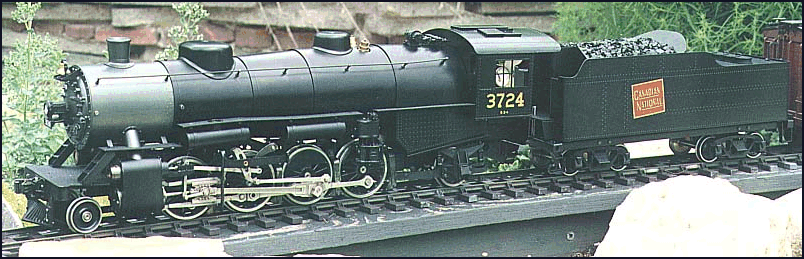

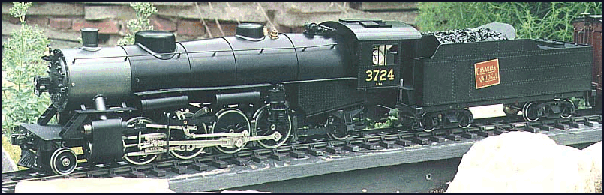

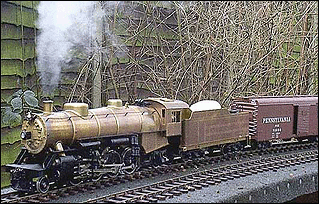

USRA
Mikado |
|
USRA
Mikado
2 - 8 - 2 |
 |
SPECIFICATIONS
| Scale: |
1:32 |
|
Valve Gear: |
Walschaerts 6mm travel,
75% cutoff, D-slide valves |
| Gauge: |
1 (45mm) |
|
Fittings: |
safety
valve, pressure gauge, gauge glass, blower valve, check valve and regulator.
Eccentric for later fitting of axle pump. |
| Weight: |
7.1 kg total |
|
|
| Length: |
770 mm over buffers |
|
|
| Width: |
102 mm |
|
Firing: |
Methylated alchocol
burner |
| Height: |
164.8 mm |
|
Wheels: |
All wheels
insulated. Drivers 50 mm stainless steel. Pilot wheels dia. 26 mm, trailing
truck dia. 34 mm and tender wheel dia. 26 mm |
| Radius: |
2m (6'6") minimum |
|
|
| Boiler: |
Centre flue 400cc at
70% full. 3 - 4 kg/cm2 working pressure. |
|
Tender: |
Water tank capacity 200
cc
Alcohol tank capacity 200 cc |
| Cylinders: |
2 with 13 mm bore x 20
mm stroke |
|
|
|


PRICE and
AVAILABILITY
| All Aster locomotives are limited
production. Once sold out they are no longer available although models may still be
available from retailer stock. Factory availability can be checked at http://www.asterhobby.co.jp/price.html Argyle's Aster pricing can be found in the Aster Price List. |
PROTOTYPE
