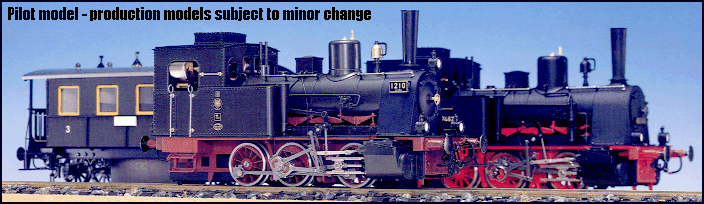

KPEV
T3 / DR 89 |
|

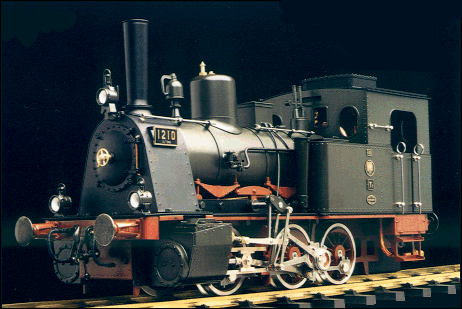

| K.P.E.V. T3

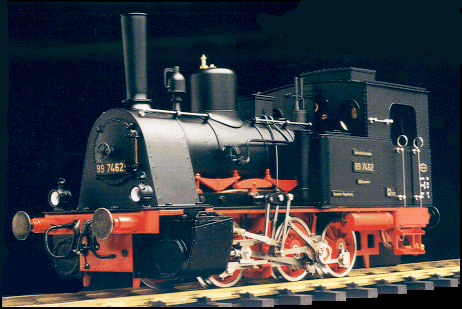

Deutsche Reichsbahn 89 |
 |
SPECIFICATIONS
| Scale: |
1 / 32 |
|
Cylinders: |
2 with 10 mm bore x 15
mm stroke |
| Gauge: |
1 (45mm) |
|
Valve Gear: |
|
| Weight: |
2.16 kg |
|
Fittings: |
Safety
valve, pressure gauge, water gauge, blower valve and regulator |
| Length: |
172 mm over bufers |
|
|
| Width: |
96 mm |
|
Firing: |
Methylated
alcohol 4 wick burner 50 cc capacity |
| Height: |
130 mm |
|
|
| Radius: |
0.6m (2') minimum |
|
Lubricator: |
Roscoe displacement
type |
| Boiler: |
Type "C"
110cc at 80% full, 2 fire tubes, 3 kg/cm2 working
pressure. |
|
Wheels: |
Drivers 34mm stainless
steel |

PRICE and
AVAILABILITY
| All Aster locomotives are limited
production. Once sold out they are no longer available although models may still be
available from retailer stock. Factory availability can be checked at http://www.asterhobby.co.jp/price.html Argyle's Aster pricing can be found in the Aster Price List. |
PROTOTYPE
| In 1881, the Prussian State Railways ordered
their first T-3 locomotives not knowing that this classic design was destined to become
world famous. To many railfans, the thought of the T-3's silhouette still conjures up
romantic visions of lonely branch line operations with the tiny locomotive hauling a
string of four wheeled coaches into yesteryear. While it may be difficult to pinpoint
exactly what endears the T-3 to railfans, there is no doubt that the locomotive's
reliability and operating characteristics endeared it to both its engineers and owners. A
total of 1550 T-3s were built between 1881 and 1906 with 1345 of these going to the
Prussian State Railways. The remainder were used on privately owned lines in both Europe
and abroad. The T-3's reputation was based on her simple yet ingenious design. The boiler
was exceptionally efficient and generated fairly dry steam in spite of not having a
superheater. The firebox grate area, originally 1.2 square meters was later increased to
1.35 square meters; the firebox squeezed in nicely between the the last set of drivers.
The 1100mm diameter drive wheels were supported at three points making the locomotive

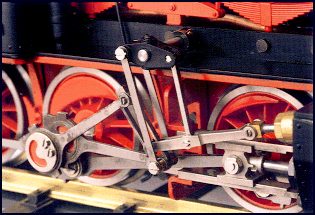

quite stable. The ancient Allan valve gear was almost humorous in its operation but did
its job well. However, time eventually caught up with the T-3; when branch line speed
limits were raised from 40 km/hr to 50 km/hr her speed capability of only 45 km/hr
relegated her to yard duties for the remainder of her career. |
