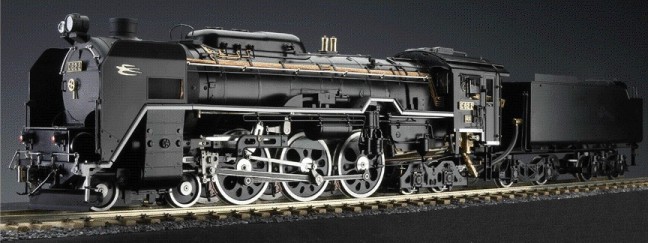

JNR
C62 2 |
|
Japanese National Railways
C62 2 Niseko Hokkaido Version |
 |
SPECIFICATIONS
| SCALE/GAUGE |
1/30, Gauge 1 (45mm) |
|
CYLINDERS |
2
Cylinders phosphor bronze
Bore 15 mm X stroke 20 mm
Drain cocks fitted
Steam port 1.5 mm
Cutoff 75%
Slide valve travel 4 mm |
| TOTAL WEIGHT |
Locomotive 7.5kg
Tender 2.5kg |
|
| LENGTH |
Locomotive 483 mm
Tender 284 mm |
|
| WIDTH |
Locomotive 104
mm
Tender 100 mm |
|
PISTON |
Rulon
piston rings 2 x 2 |
| HEIGHT |
Locomotive 142
mm
Tender 120 mm |
|
VALVE
GEAR |
Walschaert |
| WHEEL ARRANGEMENT |
4-6-4 JNR Hudson |
|
BOILER
TYPE |
LOCOMOTIVE
TYPE
made from copper tubing |
| DRIVING WHEELS |
Dia. 58 mm Boxpok Type |
|
WATER |
350
CC at 70% full. |
| PILOT & TRAILER WHEELS |
Dia. 29 mm |
|
PRESSURE |
Aprox.
3 kg./sq.cm
at normal working pressure |
| TENDER TRUCK
WHEELS |
Dia. 29 mm |
|
FITTINGS |
Two
safety valves,
pressure gauge,
regulator / blower valve,
by-pass valve and
water gauge |
| MINIMUM
RADIUS |
2
m |
|
| FUEL |
GAS,
COAL |
|
| GAS
TANK |
120
cc of BUTANE GAS |
|
AXLE
DRIVEN PUMP |
Bore
5 mm x 6 mm ram stroke |
| WATER
TANK |
300
cc
hand pump installed |
|
|
|

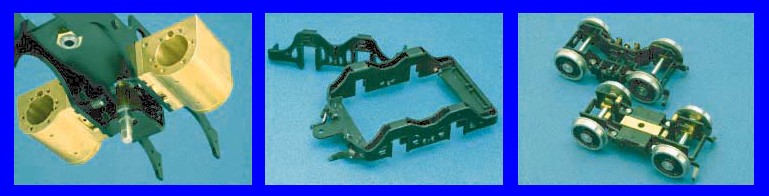

FEATURES
As the C622 is the most famous type of steam locomotive in Japan,
ASTER is releasing a third production run of this popular Gauge 1
model. It is manufactured to more stringent specifications and with more
detail than the previous two versions. Highlights of this third
run include:
- 1/30 Scale Gauge 1 Live Steam Locomotive
- Coal / gas firing burner
- New type drain valve fitted
- Drivers equalised with leaf springs made
with leaf metal enabling accurate adjustment
- Fully detailed with snow plough
- Minimum Radius 2 metres - first coal firing model capable of
negotiating this small a curve.
- Fully equalised pilot track and drivers, exactly as on the
prototype
- Large whistle fitted - same type as on
the H8 Allegheny
Operational enhancements:
- All working pipes and peripheral components
fully
re-designed and positioned to ease maintenance
- User friendly blower and regulator valve
operation.
- Screw type reverser installed just as in
the prototype.
- Wide fire box hole makes coal firing
easy.
|
PRICE and
AVAILABILITY
| All Aster locomotives are limited
production. Once sold out they are no longer available although models may still be
available from retailer stock. Factory availability can be checked at http://www.asterhobby.co.jp/price.html Argyle's Aster pricing can be found in the Aster Price List. |
